A BPMN diagram editor you can drop into any page — agnostic of UI framework and backend, built on @maxgraph/core.

npm version License: GPL-3.0

bpmn-editor

What this is (and isn't)

@sourcentis/bpmn-editor doesn't assume React/Vue/Angular, and it doesn't assume a server. But it is not dependency-free: it's built on @maxgraph/core, its rendering engine, installed alongside it as a peer dependency.

  • Not swappable — @maxgraph/core does all the actual drawing. The editor is built on it, the same way a chart library is "built on" Canvas.
  • Swappable (and optional) — everything backend-shaped (loading a catalogue of objects to link to, saving to a server) is expressed as small, optional TypeScript interfaces ("ports") that you implement. Provide none of them and the editor still works fully standalone: draw, import a .bpmn/XML file, export it back out.

Features

  • Full BPMN-ish drawing surface: tasks, states/events, gateways, data objects/stores, lanes, activities groups, annotations, conversations, sequence/message/conditional/default flows — drag-and-drop from a palette, connect, recolor, rotate, undo/redo.
  • Import / export .bpmn/XML files — works with zero backend.
  • Export to SVG, with the BPMN icon font embedded so the file renders correctly outside the browser.
  • Read-only "viewer" mode (readOnly: true): disables editing, keeps pan/zoom, and turns clicks on linked elements into a navigate event.
  • Two integration levels: a batteries-included default toolbar (ui: 'default'), or canvas-only (ui: 'none') so a host application can drive everything through the instance API with its own UI.
  • Optional backend ports — see the backend integration guide.
  • i18n-ready — every user-facing string is overridable, see the i18n guide.
  • Self-contained: the BPMN icon font and every toolbar/menu icon are bundled and inlined at build time — no extra <link>, no separate CSS.
  • Multi-instance safe: mount as many editors as you want on one page.
  • CSP-safe — see Security / CSP.

Installation

npm install @sourcentis/bpmn-editor @maxgraph/core

@maxgraph/core is a peer dependency — install it explicitly alongside the editor.

Quick start

<div id="editor" style="height: 640px;"></div>

<script type="module">
  import { createBpmnEditor } from '@sourcentis/bpmn-editor';

  const editor = createBpmnEditor(document.getElementById('editor'), {
    ui: 'default',
  });
</script>

That's it — a complete BPMN editor with a toolbar, drag-and-drop palette, undo/redo, and import/export, with no server and no other setup.

Live examples

Both examples below run entirely client-side, loaded from the published npm package via a CDN — the same code as examples/editor.html and examples/viewer.html in the repository.

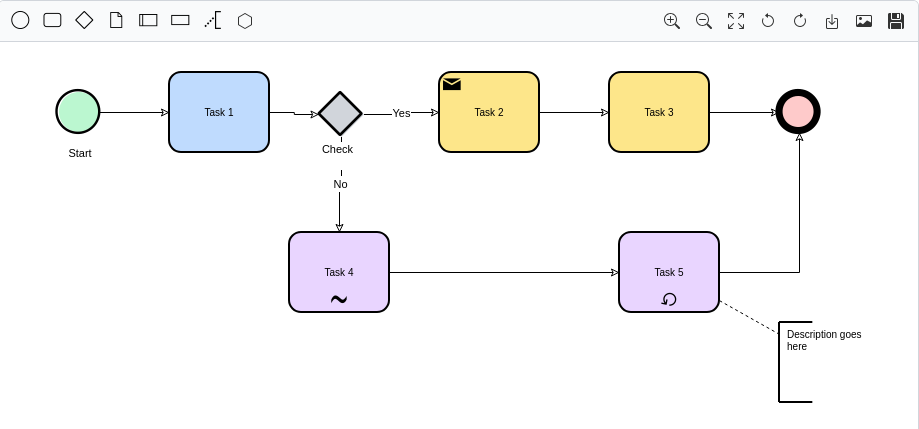

Editor (ui: 'default')

Full toolbar, drag-and-drop palette, undo/redo, import/export — everything enabled. No provider and no persistence configured, so Save downloads a local .maxgraph file. Try dragging a shape from the palette, or use Import/Export in the toolbar.

Viewer (ui: 'none' + readOnly: true)

Canvas only, no toolbar, no editing — pan and mouse-wheel zoom still work. This is the read-only mode used to embed a diagram for browsing rather than editing.

Ports (optional backend integration)

Two small interfaces let the editor talk to a backend without knowing anything about it — both entirely optional, and covered in detail in the backend integration guide:

  • BpmnObjectProvider — powers the "insert cartography object" search inside the contextual menu. Without it, that action is simply hidden.
  • BpmnPersistence — powers the ui: 'default' toolbar's "Save" action. Without it, "Save" downloads a local .maxgraph file instead.

Instance API

const editor = createBpmnEditor(container, options);
Method Description
loadXml(xml) Replaces the current graph with the given editor-format XML.
getXml() Serializes the current graph.
importBpmnXml(xml) Replaces the graph by parsing standard BPMN 2.0 XML.
exportBpmnXml() Serializes the graph as standard BPMN 2.0 XML — the counterpart of importBpmnXml().
setEnabled(enabled) Toggles editing on/off at runtime.
exportSvg(filename?) Exports to SVG and triggers a download.
zoomIn() / zoomOut() / fit() Viewport controls.
on(event, handler) / off(event, handler) Subscribe/unsubscribe.
destroy() Tears down the instance and removes every listener it added.

See the API reference for the full options list, event payloads, and message keys.
